Bevel Buddybox 4 Series Reducer

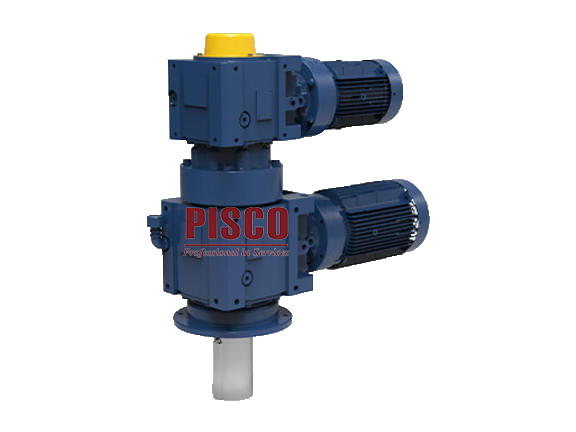

The Bevel Buddybox® 4 Series Reducer combines the strength and flexibility of the Cyclo® gear reducer and a single-stage right-angle spiral-bevel gearbox in a rugged right-angle gearbox design. With a 24-month warranty, regardless of hours of operation, the Bevel Buddybox® 4 Series Reducer is an excellent choice for applications in material handling, asphalt mixers, specialty machine industries, conveyors, and other applications requiring right-angle speed reducers.

Technical Info:


* Input: Integral Motor, X-Adapter.

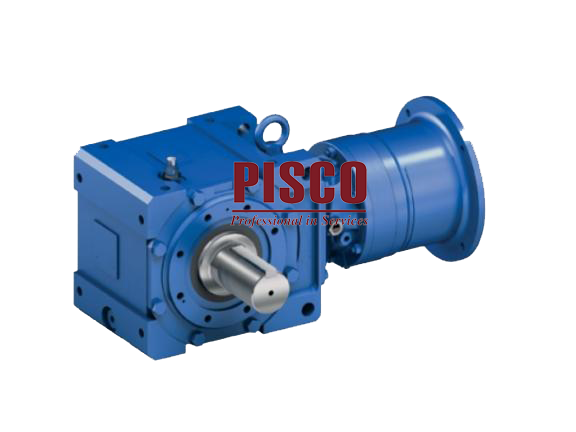

* Output: Shrink Disc, Taper-Grip® Bushing, Solid Shaft, Keyed Hollow Bore, Screw Conveyor.

* Mounting: Hollow Shaft, Foot, Flange, U-Face (direct surface mount).

* Sizes: 6 frame sizes (A-F), 48 to 1059 kg.

* Ratios: 11:1 to 26,000:1

* Power Range: 0.1kW to 75kW.

* Torque Capacity: Up to 18,000 Nm.
* Motor Standards: IEC,CE, JIS, UL, CSA, NEMA.

Key Facts:


* Efficiency: 94 %

* Torque Capacity: 18,000 Nm.
* Max Rating: 75 kW.

Features:


* Taper Grip® Bushing System: The keyless Taper-Grip® bushing system provides simple and reliable installation without the need for a custom shaft.

* Ductile Iron Housing: New ductile-iron housing is twice as strong as cast iron, making it one of the most rugged bevel gearboxes available.

* Increased Overhung Load Capacity: Cyclo® BBB4 has over 375% overhung load capacity than previous models.

* Increased Ratings: The newly designed Cyclo® BBB4 series has been optimized for increased power ratings over the previous generations.

* New Larger Size: New F Size yields higher torque and can accommodate larger shaft diameters.

* New Ratios Available: 46 standard and 87 optional ratios added.

* Unified Lubrication System: Single oil-bath lubrication system for easy maintenance and higher performance.

* Compact Design: The most torque-dense right-angle gearbox design available in the industry. The new ductile-iron housing allows for higher radial load in a small, compact design.

* Optional Taconite Seal System: Heavy-duty, fortified, grease purgeable system withstands the most demanding applications.
