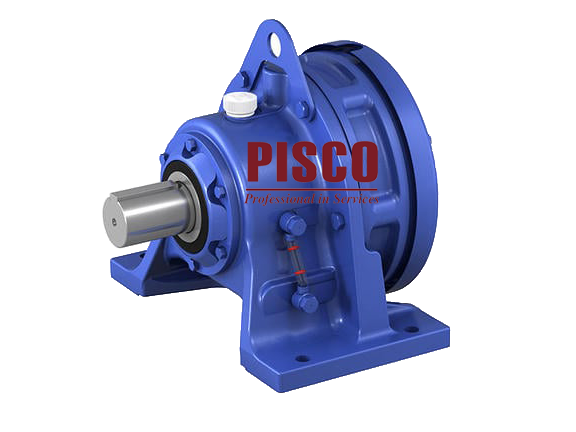

Cyclo® Reducer

CYCLO® REDUCER

Overview:

* With its long history and delivery record, it has become synonymous with the term speed reducer.
* Unique Cyclo® mechanism results in high durability and extended operating life.
* Wide variety of products available that take advantage of this technology.
* Select the best product to meet your needs from a wide range of capacities and reduction ratios.

Technical Info:

* Output Shaft: Solid shaft.
* Output Shaft Direction(s): Any Mounting Direction (horizontal, vertical downward, vertical upward).
* Mounting Style: Foot Mount, Flange Mount, Case Mount.
* Frame Size: 56 sizes (output stages).
* Reduction Ratio: 2.5:1 - 658503:1
* Rated Torque: 24 - 68200 N⋅m.

Features:

* 80 years of proven track performance.
* Shock load capacity with Cyclo units: 500 %
* 24 months warranty worldwide.

Product Features:

* Cycloidal Speed Reduction Technology: Quiet, efficient and reliable operation with high torque density and compact in size.
* Break-Resistant Teeth: The "cycloidal disc" has a unique and smooth curve, which together with its smooth rolling contact, prevents tooth breakage, resulting in a durable product with a long product life.
* Modular Design: Interchangeable cast iron housing in foot, flange or face mounting configurations.
* Superior Steel Components: Internal components manufactured from hardened, vacuum-degassed, bearing grade steel provide minimal vibration, low noise, low backlash and extended operational life.
* Broad Variation: Choose the product that best fits your needs from a wide selection, including capacities of 0.1 - 132 kW, reduction ratios of 2.5 - 658503, as well as outdoor and explosion-proof motor types.
* Service Factor Selection: Choose from any Service Factor. Reducer frame sizes can be increased independently, without increasing motor capacity.

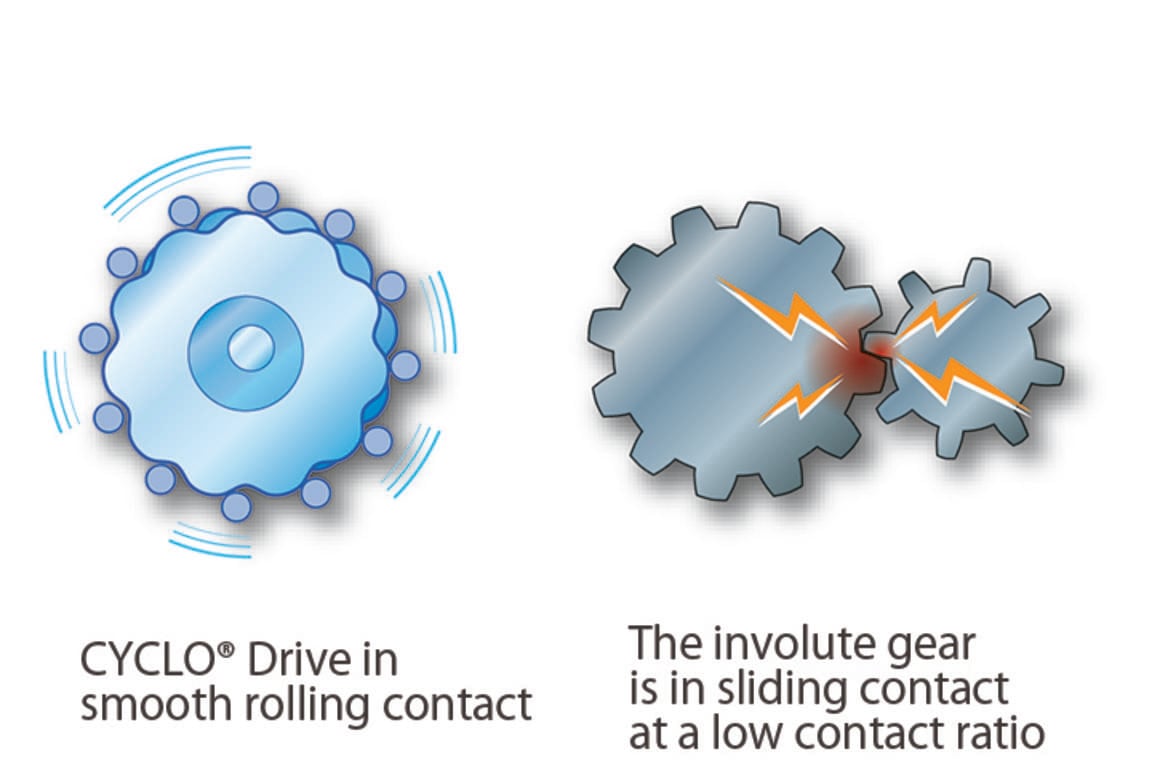

Break-Resistant Teeth

Unlike a regular involute tooth-gear, the "cycloidal disc," which is the gear for the Cyclo® Reducer, features a distinctively smooth curve.
A unique circular-arc tooth profile is also used for the internal gear. The smooth rolling contact that prevents tooth breakage results in a durable gearbox with a long service life. (Some low reduction ratio models use helical gears and planetary gears.)
