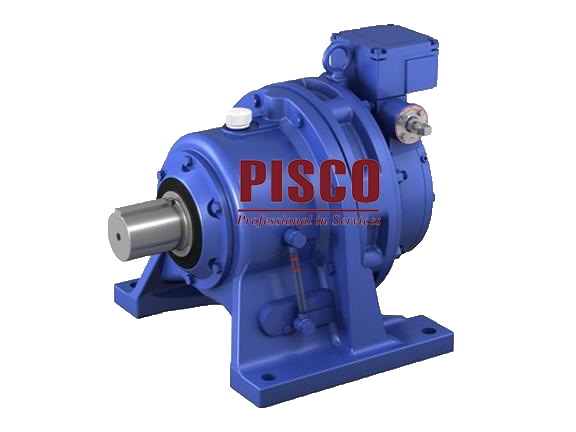

Cyclo® Reducer with Torque Limiter

CYCLO® REDUCER WITH TORQUE LIMITER

Overview:

* Cyclo® reducer with installed torque limiter to detect overloads.
* Protects your valuable machines from catastrophic failure.
* The torque limiting is applied at the drive part, allowing you a more accurate examination of your device safety factor, which makes optimal equipment design possible.

Technical Info:

* Output Shaft: Solid shaft.
* Output Shaft Direction(s): Any Mounting Direction (horizontal, vertical downward, vertical upward).
* Mounting Style: Foot Mount, Flange Mount, Case Mount.
* Frame Size: 15 sizes.
* Reduction Ratio: 6:1 - 658503:1
* Rated Torque: 50 - 68200 N⋅m.

Feature:

* (accuracy of configured torque ±5 - ±10%): ±10 %
* Adjustable range for the configured torque: ±25 %

Product Features:

* Compact: Compact Cyclo® reducer boasts a high reduction ratio, high efficiency, and a small number of parts, including a superior built-in torque sensor (spring / limit switch type, load cell type).
* High Accuracy and Reliability: The sensor base consists of coiled springs or load cells, and features high accuracy and reliability. (Accuracy of configured torque ±5 - ±10%).
* Allows for Economical Equipment Design: The torque limiting is applied at the drive part, allowing you a more accurate examination of your device safety factor, which makes optimal equipment design possible.
* Operates During Momentary Overload: The mechanical torque detection mechanism allows for a shorter detection time compared to thermal relays, detecting overloads instantaneously.
* Wide Range of Torque Adjustment: The adjustment range for configuring the torque is a wide ±25%, which means adjustments can easily be made on-site to match the actual torque of the equipment. (However, it must be within the maximum and the minimum configured torque).
* Safe Unattended Operation: Built-in buzzer and indicator light in the motor operation circuit ensures a safe unattended operation. By using either the double or triple safety models, it is also possible to drive the auxiliary motor for a thickener shaft.
* Combine with Other Protection Equipment: Can be combined with shear pins to achieve double or triple protection against overloads.

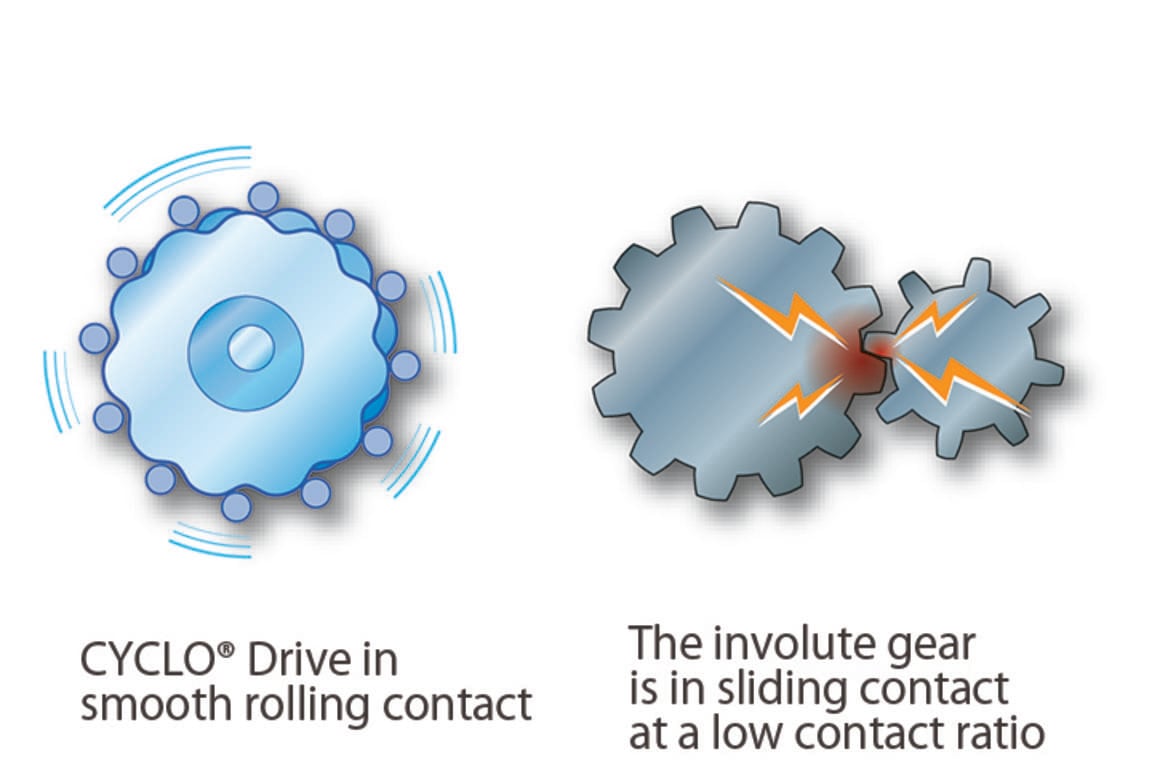

Break-Resistant Teeth

Unlike a regular involute tooth-gear, the "cycloidal disc," which is the gear for the Cyclo® Reducer, features a distinctively smooth curve.
A unique circular-arc tooth profile is also used for the internal gear. The smooth rolling contact that prevents tooth breakage results in a durable reducer with a long service life. (Some low reduction ratio models use helical gears and planetary gears.)
