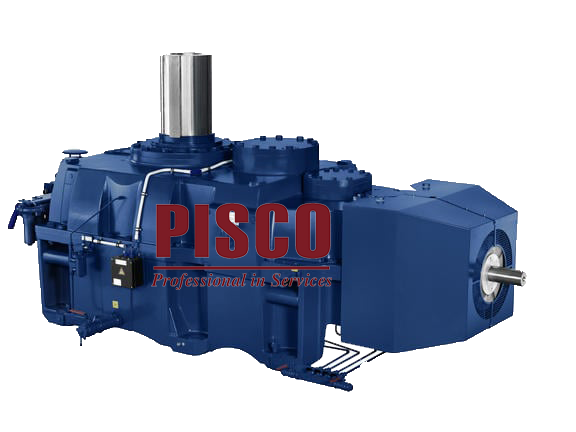

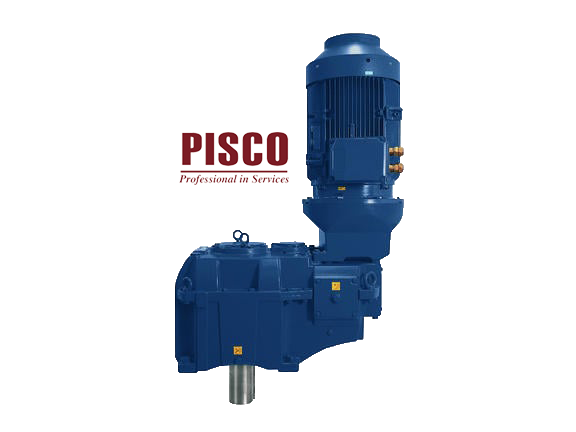

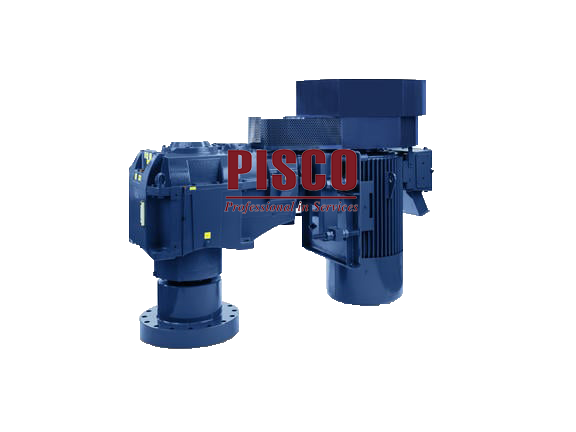

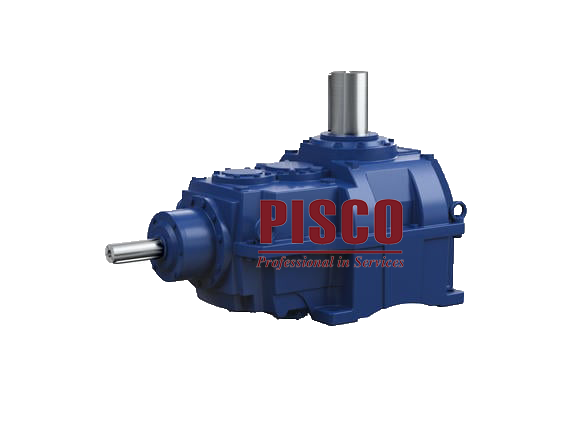

Hansen P4 Multistage - Vertical

HANSEN P4 MULTISTAGE - VERTICAL

Overview:

* Specific vertical housing - available in 20 sizes from 3 to 1100 kNm output torque.
* Increased bearing span for robustness against high overhung loads.
* Mounting feet symmetric around low speed shaft to evenly distribute loads.
* Service friendly with split plane and maintenance-free sealing system.
* Powerful Hansen P4 gear geometry for low noise and vibration levels.
* Designed for heavy-duty applications: Cooling towers, Mixers, Toasters, Pulpers and more.

Technical Info:

* Number of Sizes: 20.
* Housing type: Specific housings for vertical applications (split-plane).
* Gears: Helical and Bevel helical (in accordance with AGMA).
* Stages: 2, 3 or 4 stage.
* Reduction Ratios: 3.55:1 to 630:1 and special ratio's upon request.
* Nominal output torque: 3 to 1100 kNm.
* Input speed: up to 1800 rpm.
* Shaft type: Solid or hollow low speed shaft.
* Lubrication: Pump lubrication.

Key Product Facts:

* Maximum Nominal output Torque (and even larger upon request): 1100 kNm.
* Parallel and Right Angle gearboxes: 20 sizes.
* A wide range of reduction ratios: 2/3/4 stages.

Advantages of Hansen P4 Vertical Series:

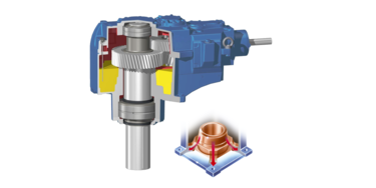

* Dedicated Vertical Housing: Rounded design, Smooth transition of high forces from centre bore to mounting feet.
* Extreme High Overhung Loads: A wide range of Robust bearing arrangements and flange configurations.
* Maintenance-Friendly Split Housing: Horizontally above the oil level for ease of inspection and maintenance.
* Leakage-Free Sealing Systems: Drywell at the low speed shaft and maintenance free Oil-lock at the high speed shaft.
* Reliable Lubrication: Lower oil level, Less losses, Better thermal rating & Longer oil life.
* Instruments & Accessories: Condition monitoring instruments, Cooling devices & Complete Drive Packages (including base plates or lantern housings, motors, couplings,...).
