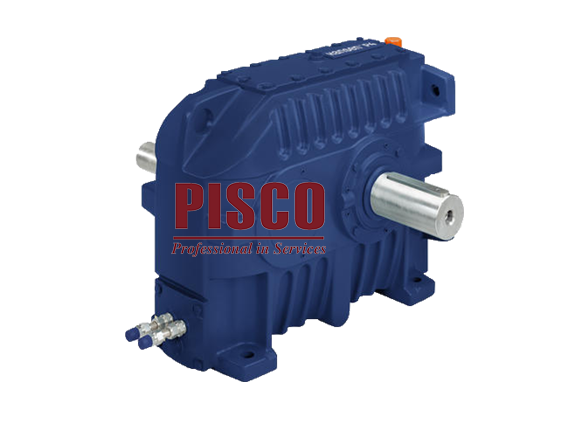

Hansen P4 Single Stage

HANSEN P4 SINGLE STAGE

Overview:

The Hansen P4 single stage gearbox is available in a parallel horizontal configuration. Technically balanced between optimum thermal and mechanical performance there are mainly 2 series available:

* The standard single stage series with a monoblock housing are available in 5 sizes with a power rating up to 4MW.
* The heavy duty single stage series has a housing with horizontal split plane and a dedicated pressure lubrication system with a power rating up to 12MW (available in 4 sizes).

Technical Info:

* Number of Sizes: 9
* Housing type - standard: Monoblock.
* Housing type - heavy duty: Split plane.
* Gears: Helical gears (designed and rated in accordance with AGMA).
* Reduction Ratios: 1.2:1 to 5.6:1 (pre-designed ratio available within 1% of requested ratio).
* Power Rating: Up to 12 MW.
* Nominal output torque: from 15 to 185 kNm.
* Input speed: up to 1800 rpm.
* Lubrication - standard: Splash Lubrication.
* Lubrication - heavy duty: Dedicated pressure lubrication system.

Key Product Facts:

* With a wide range of reduction ratios: 1 stage.
* Maximum power rating: 12 MW.
* Parallel gearboxes: 9 sizes.

Advantages of Hansen P4 single stage series:

* Powerfull Gear Geometry: For maximum load capacity, minimum losses & lower noise levels.
* Specific Housing: Single stage application-oriented.
* Large Inspection Cover: Above the oil level for easy and quick inspection without oil drainage.
* Above the oil level for easy and quick inspection without oil drainage: Oil-lock, designed to keep the oil in and dirt out.
* Reliable Lubrication: Dedicated pressure lubrication system for heavy-duty.
* Instruments & Accessories: Application oriented cooling devices, condition monitoring, etc.
